Περιγραφή

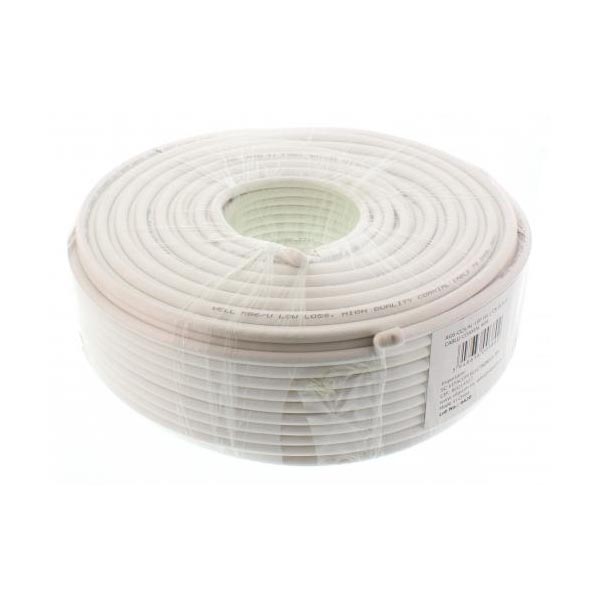

Kαλώδιο WELL oμοαξωνικό 7mm, άσπρο CX-011LC
Coaxial Cable RG6/U
Impedance: 75Ohm
Conductor: 1.0mm
Material: CCS, copper-clad steel
Outer material: PVC white
Outer diameter: 7.00mm
Shield: Al foil + AI&Mg alloy wire 48 x 0.12mm
| FREQUENCY | TRANSMISSION | RETURN LOSS |
| 50.00 MHz | 4.60 dB | 34.25 dB |
| 100.00 MHz | 5.45 dB | 32.49 dB |
| 200.00 MHz | 7.87 dB | 49.00 dB |
| 394.00 MHz | 11.62 dB | 32.94 dB |
| 500.00 MHz | 13.32 dB | 29.60 dB |
| 1000.00 MHz | 17.39 dB | 26.66 dB |
| 1500.00 MHz | 24.78 dB | 36.58 dB |
| 2000.00 MHz | 28.92 dB | 26.92 dB |
T-I-29061
